Description
Harness the power of the sun with our Residential Solar Systems equipped with Battery Stack. These cutting-edge energy storage solutions are designed to seamlessly integrate with residential solar installations, allowing you to capture and store excess solar energy for later use.

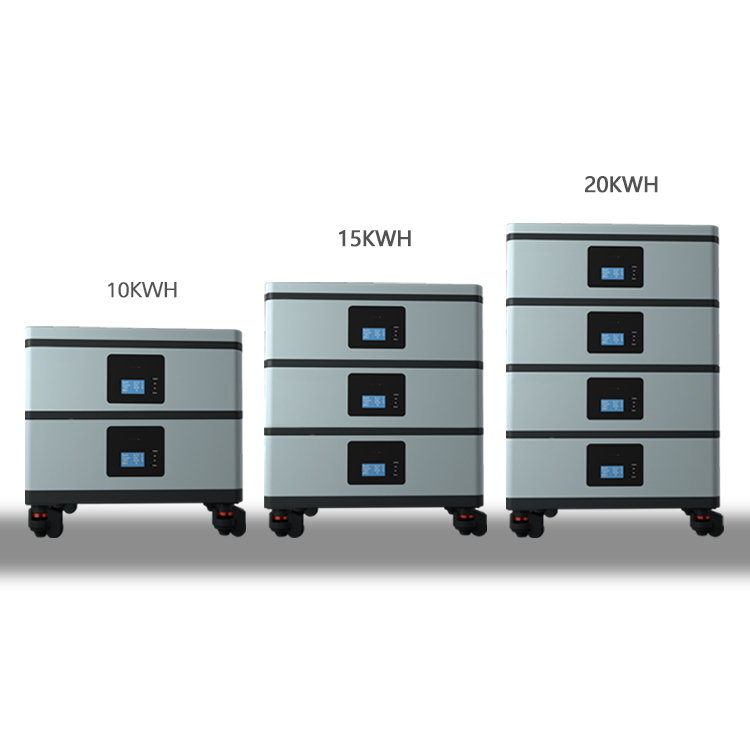

Choose from multiple energy capacity options (5kWh, 10kWh, 15kWh, and 20kWh) and voltage variants (48V and 51.2V) to tailor the system to your specific energy needs. Our LiFePO4 battery technology ensures high safety, stability, and longer cycle life, making it a reliable choice for home energy storage.
With intelligent battery management, remote monitoring capabilities, and grid backup functionality, these systems empower homeowners to maximize their solar energy utilization, reduce electricity costs, and enjoy uninterrupted power during grid outages. Embrace a greener and more sustainable energy future with our Residential Solar Systems.
- Battery Type: Lithium Ion
- Model Number: YOU-Super-S
- Brand Name: China
- Place of Origin: Guangdong
- Output Power Range: 5~10 kWh
- Dimension (L*W*H): 618*450*208.5mm
- Weight: 48Kg±3kg
- System Type: Stackable
- Communication Port: CAN, RS485
- Grid connection: Off grid, Hybrid grid
- Rated energy(kWh): 5.12KWh
- Configuration: 2P16S
- Rated charge/discharge Current(A): 50A/100A @25±2℃
- Working Voltage(V): 42V~58.4V
- Maximum charge/discharge current: 100A@25±2℃
- Working Temperature: 0~40℃(Charge) -20~40℃(Discharge)
- IP grade: IP20
- Communication mode: CAN&RS485
- Nominal Capacity(Ah): 100Ah
- Weight(Kg): 48Kg±3kg
